APU-Telescopic window reveal bead IDEAL-R W26

Die APU-Telescopic window reveal bead IDEAL-R W26

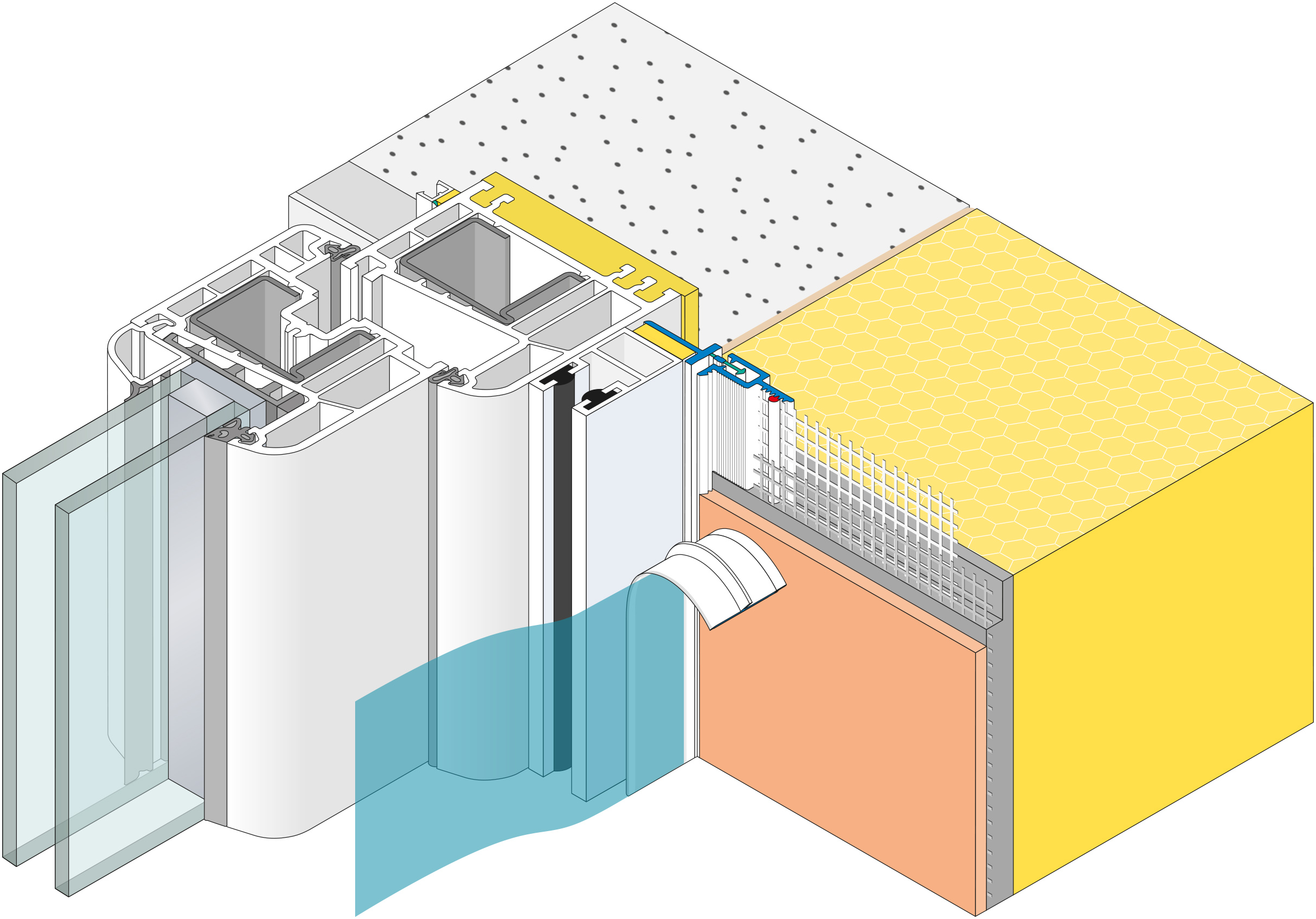

The APU telescopic window reveal bead IDEAL-R is used in external thermal insulation composite systems (ETICS) in accordance with the current APU selection criteria. The profile is bonded laterally into the reveal to the existing roller shutter guide rail. After completion of the rendering work it provides a clean and secure termination of the plaster.

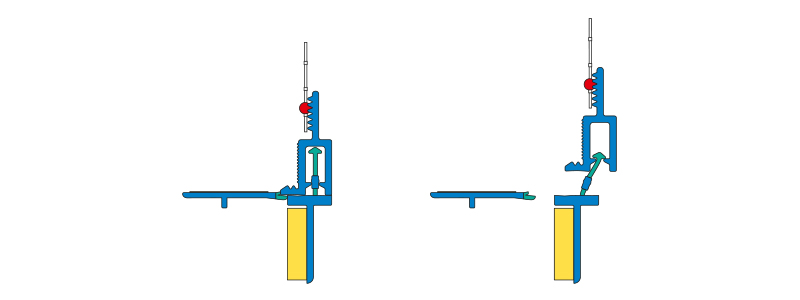

The profile comes with a self-adhesive PE foam tape, which ensures a watertight, lasting seal. Once the protective strip has been removed, the integrated flexible telescopic section can absorb movement in the connection area. A fabric strip is welded to the profile. Each bar has a fabric overhang on one side of 10 cm in the lengthways direction There is a piece of self-adhesive tape on protective flap in order to secure the third-party protective film. This protects the window during the plastering work. After completion of these tasks, the protective flap is pulled off and what is created is a clean edge to the plaster.

Area of application W26 IDEAL-R

With adhesive connection – only for surfaces suitable for being stuck to
Test of adhesion required

Window position

Within masonry

Insulating material thicknessup tp 160mm

Window sizeup tp 2.6m²

Can be used only on white plastic windows.

Design

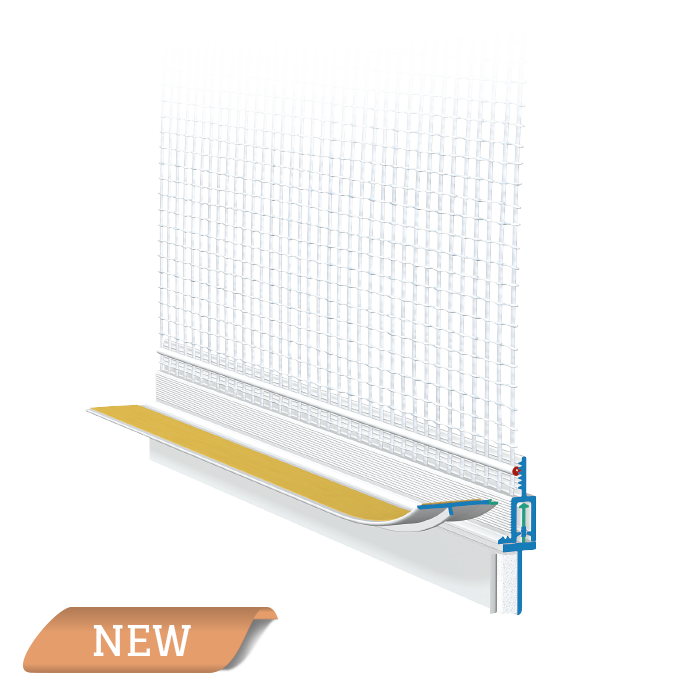

Telescopic window reveal bead IDEAL-R, with mesh 12,5 cm

W26-2400

Length2.4 m

Packaging unit25 bars = 60 m

Weight (per PU)

Features

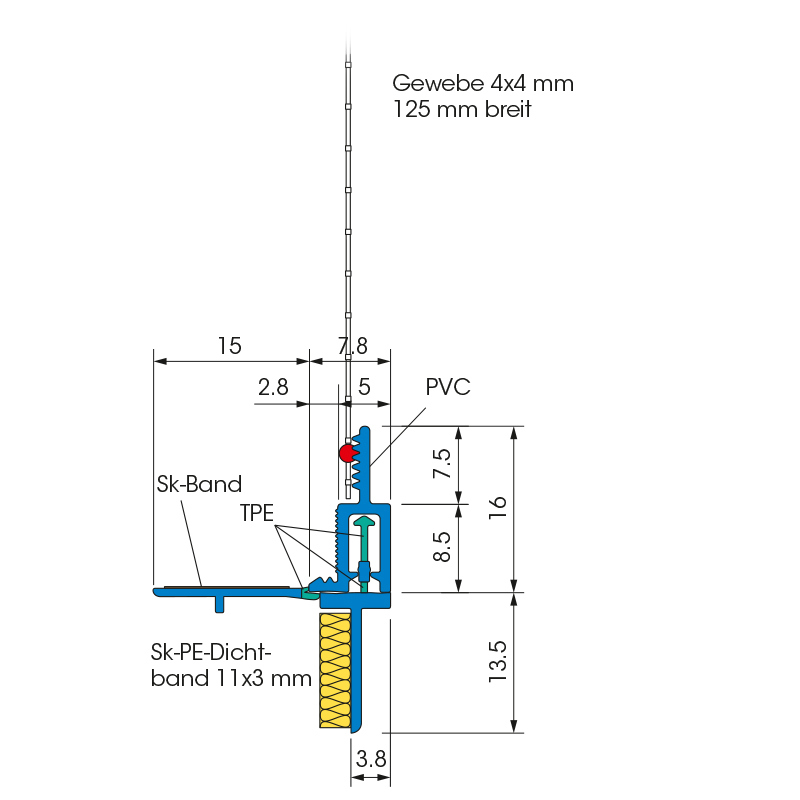

Material	Rigid PVC, manufactured in accordance with DIN 16941 TPE, manufactured in accordance with DIN 16941
Protective flap	Removable, with double-sided self-adhesive tape
Features	Telescopic section with flexible TPE connection
Seal	PE foam tape, 11 x 3 mm
Mesh	Min. 160 g/m2, approved for use in ETICS 12.5 cm wide, mesh size 4 x 4 mm ultrasonically welded

Important notes

Storage	Always store profiles dry and flat.
Sub-surface	The sub-surface must be even, dry, free of dust and suitable for the profile to be stuck on permanently. Any residues that would impair adhesion must be removed.
Test of adhesion	Perform adhesion test.
Other applications	Any applications not clearly described in the documents may be implemented only after consultation with the plaster or ETICS manufacturer.
Selection criteria	Adhere to the latest APU selection criteria.
